LitePlan 207lm Complete Central Battery System for 50V, 110V or 240V AC/DC Open Area Lens
Quick Find: 55895
Part No: S-CBH+LED40OA
In Stock
Available for delivery
Available for delivery
Price
£72.41
Inc. VAT
£86.89
RRP
£118.45
39% Off
Save a total of £46.04
Save a total of £46.04
£72.41
Inc. VAT £86.89
Inc. VAT £86.89
Saving 39% (£46.04) on RRP: £118.45
Quick Find: 55895
Part No: S-CBH+LED40OA
Accessory Type
Ballast
Control Gear Technology
LED
Control Gear Type
LED Driver
Dimming?
Non-Dimmable
Length
197 mm
Manufacturer
Liteplan
Type
Control Gear
Width
40 mm

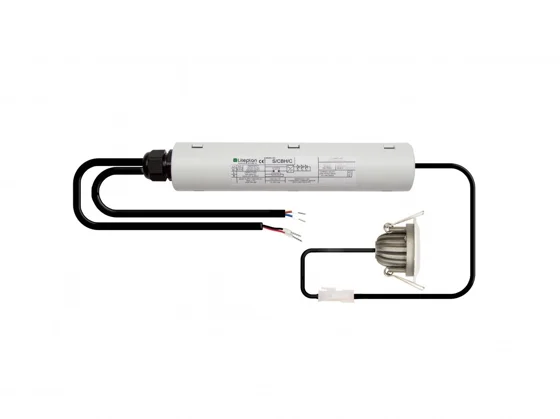

LitePlan 207lm Complete Central Battery System for 50V, 110V or 240V AC/DC Open Area Lens from Lite-Plan
Model: S-CBH + LED 40 OA
An emergency LED central batter driver with hold off (50V, 110V or 240V AC/DC) designed to accept the feed from the central battery and power one of a choice of ceiling recessed emergency LEDs at 700mA when the un-switched supply is broken. The S-CBH/LED/40/OA system has a 110 degree beam angle and provides a 207 Lumen light output. 200 Lumens.
Technical Specifications
| Control Gear Type | LED Driver |
|---|---|
| Accessory Type | Ballast |
| Manufacturer | Liteplan |
| Dimming? | Non-Dimmable |
| Length | 197 mm |
| Type | Control Gear |
| Width | 40 mm |
| Emergency Voltage from CBU | 45-240V AC/DC (50V, 110V & 230V Nominal) |
| Voltage Un-Switched Supply | 230-240V AC 50/60Hz |
| Terminal Cable Size | 0.75mm Ferrules |
| Control Gear Technology | LED |
Alternative Stock Identifier Part Codes
| S-CBH+LED40OA |
Components
For LitePlan 207lm Complete Central Battery System for 50V, 110V or 240V AC/DC Open Area Lens
Downloads
 | S-CBH MODULE Datasheet |
