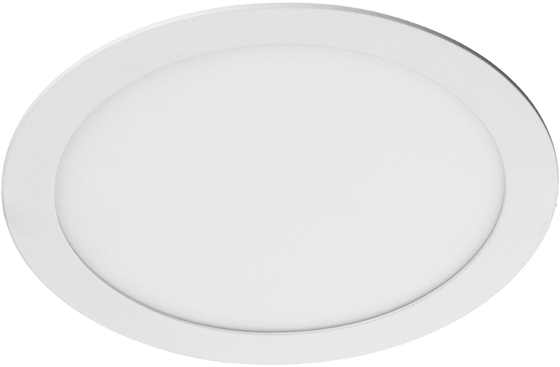

Red Arrow 20W IP44 Round Mini LED Panel Daylight
Quick Find: 65996
Part No: ORB20-60
FREE Shipping
On orders over £100
On orders over £100
IN Stock
Available for delivery
Available for delivery
Price
£16.95
Inc. VAT £20.34
RRP £34.86
51% Off
Save a total of £17.91
Save a total of £17.91
£16.95
Inc. VAT £20.34
Inc. VAT £20.34
Saving 51% (£17.91) on RRP: £34.86
Quick Find: 65996
Part No: ORB20-60
Beam Angle
120 Degrees
Colour Temp
6000 K
Depth
35 mm
Diameter
240 mm
Dimming?
Non-Dimmable
Downlight Cut Out
215 mm
Equivalent Wattage
70 W
Finish
White
Light Colour
Daylight (860/865)
Light Fitting Type
LED Panel
Lumens
1600 lm
Manufacturer
Red Arrow
Material
Aluminium
Technology
LED
Type
Light Fitting
Voltage
220-240 Volt
Wattage
20 W
Red Arrow 20W IP44 Round Mini LED Panel Daylight from Red Arrow
Model: ORB20-60
A white 20 watt rated mini round LED panel fitting by Red Arrow that will emit a replicated daylight (6000K) coloured light over an approximate 30,000 hour lifespan. The white panel light is IP44 rated ensuring a higher degree of protection against the elements and will run on mains voltage. These Panels are ideal lighting solutions for educational environments and can also be used for retail and domestic purposes. Panel Dimensions: Diameter: 240mm x Depth: 13mm. Cut Out Size: 215mm. Can be dimmer compatible with addition of an ORB20D-DVR dimmable driver and can be converted to an emergency luminaire with the additional purchase of EMLEDKIT3.
Potential Energy Savings
Your saving would be approximately £420.00
Technical Specifications
| Light Fitting Type | LED Panel |
|---|---|
| Technology | LED |
| Wattage | 20 W |
| Manufacturer | Red Arrow |
| Light Colour | Daylight (860/865) |
| Dimming? | Non-Dimmable |
| Equivalent Wattage | 70 W |
| Beam Angle | 120 Degrees |
| Lumens | 1600 lm |
| Colour Temp | 6000 K |
| Depth | 35 mm |
| Diameter | 240 mm |
| Type | Light Fitting |
| Finish | White |
| Manufacturers Average Lamp Life | 30000 hrs |
| Voltage | 220-240 Volt |
| Material | Aluminium |
| IP Rating | IP44 |
| Operating Temperature | -10°C to +50°C |
| Warranty | 3 Years |
| Downlight Cut Out | 215 mm |
| Energy Efficiency Rating | A+ |
