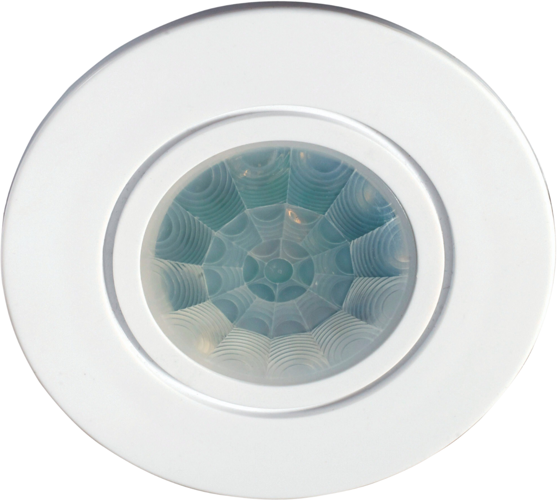

Robus PROTON 360 Degree PIR with Flush Front With Accessory Shield

Large terminals accept 2 x 1.5mm2 conductors in each terminal. Facility for loop in loop out. Earth terminal included. 3 wire - multiple sensors can be wired in parallel. Unobtrusive flush face design. High load contact rating, allows numerous fittings to be switched. No minimum load requirements. Passive infra red ensures light is switched on when sensor detects movement of heat, switched off when area is vacated. Minimises false / unwanted triggering. Complete with accessory shield to narrow beam angle. Manual over ride with automatic reset after 8 hours. Maximum loading: - 1200W Incandescent, - 300W Fluorescent, - 300W LED. Adjustable time delay of 10sec to 15min. Adjsutable lux settings 3lx to 2000lx. Max detection area of 5m diameter at 2.8m
