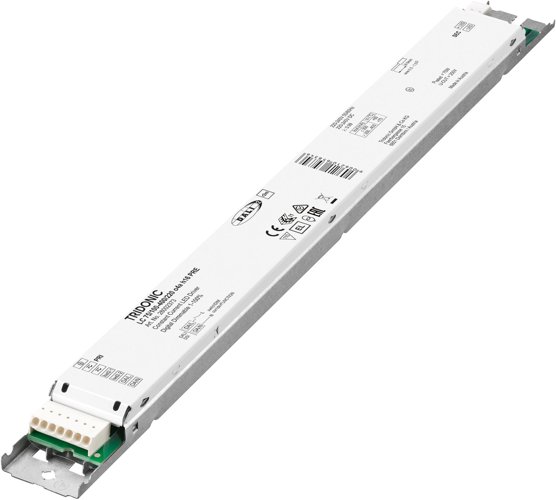

Tridonic Premium non-SELV 75W LC 100-400mA 220V one4all Linear/Area Dimming LED Driver h16 PRE
Quick Find: 54480
Part No: 28002373
In Stock
Available for delivery
Available for delivery
Price
£60.22
Inc. VAT
£72.26
RRP
£83.22
28% Off
Save a total of £23.00
Save a total of £23.00
£60.22
Inc. VAT £72.26
Inc. VAT £72.26
Saving 28% (£23.00) on RRP: £83.22
Quick Find: 54480
Part No: 28002373
Accessory Type
LED Driver
Control Gear Technology
LED
Current Output
100-400mA
Depth
16 mm
Dimming?
Dimmable
Length
360 mm
Manufacturer
Tridonic
Material
Metal
Type
Control Gear
Wattage
75 W
Width
30 mm
Tridonic Premium non-SELV 75W LC 100-400mA 220V one4all Linear/Area Dimming LED Driver h16 PRE from Tridonic
Model: 28002373
A low profile (16mm) metal LED driver with an adjustable output current between 100 and 400mA, a 75 Watt maximum output power and a 92% efficiency at full load alongside a reliability proven by a 100,000 hour life-time and 5 year guarantee. Part of the Tridonic Linear/Area Dimming Premium Series non-SELV range, this driver offers an application-oriented operating window for maximum compatibility and flexible configuration via DALI, ready2mains and I-select 2, alongside guaranteeing energy savings due to low stand-by losses and high efficiency.
Technical Specifications
| Accessory Type | LED Driver |
|---|---|
| Wattage | 75 W |
| Manufacturer | Tridonic |
| Dimming? | Dimmable |
| Depth | 16 mm |
| Length | 360 mm |
| Type | Control Gear |
| Manufacturers Average Lamp Life | 100000 hrs |
| Material | Metal |
| IP Rating | IP20 |
| Current Output | 100-400mA |
| Warranty | 5 Years |
| Width | 30 mm |
| Rated Supply Voltage | 220-240V |
| Mains Frequency | 0/50/60 Hz |
| Operating Mode (Constant Current / Constant Voltage) | Constant Current |
| Max Input Power | 81.9W |
| Control Gear Technology | LED |
Alternative Stock Identifier Part Codes
| 28002943 |
Components
For Tridonic Premium non-SELV 75W LC 100-400mA 220V one4all Linear/Area Dimming LED Driver h16 PRE
Downloads
| Datasheet |
