LitePlan Central Battery Driver with Hold Off
Quick Find: 55893
Part No: CBHMODULEONLY
FREE Shipping
On orders over £100
On orders over £100
IN Stock
Available for delivery
Available for delivery
Price
£44.65
Inc. VAT £53.58
RRP £50.90
12% Off
Save a total of £6.25
Save a total of £6.25
£44.65
Inc. VAT £53.58
Inc. VAT £53.58
Saving 12% (£6.25) on RRP: £50.90
Quick Find: 55893
Part No: CBHMODULEONLY
Compatible Lamp Type
Not Specified
Control Gear Technology
LED
Control Gear Type
Emergency
Dimming?
Non-Dimmable
Height
26 mm
Length
152 mm
Manufacturer
Liteplan
Type
Control Gear
Width
28 mm

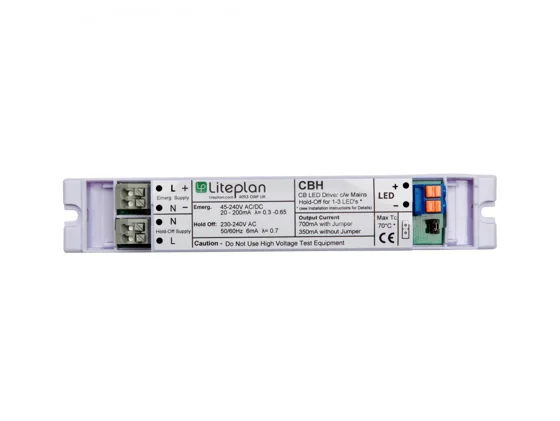

LitePlan Central Battery Driver with Hold Off from Lite-Plan
Model: CBH MODULE ONLY
The CBH unit from LitePlan is designed as a central battery driver with hold off (240V, 110V or 50V AC/DC) to run 1-3 dedicated LEDs in emergency, with the output held off whenever the 240V AC un-switched supply is present. This unit is for intermittent use - if being used as a slave, this must be considered (not for permanent use). Can be housed in a remote enclosure for use with other LitePlan dedicated emergency LEDs where requried (see S-CBH for details).
Technical Specifications
| Control Gear Type | Emergency |
|---|---|
| Manufacturer | Liteplan |
| Dimming? | Non-Dimmable |
| Height | 26 mm |
| Length | 152 mm |
| Type | Control Gear |
| Width | 28 mm |
| Emergency Voltage from CBU | 45-240V AC/DC (50V, 110V & 230V Nominal) |
| Voltage Un-Switched Supply | 230-240V AC 50/60Hz |
| Terminal Cable Size | 0.5-1.5mm Push Fit |
| Compatible Lamp Type | Not Specified |
| Control Gear Technology | LED |
Alternative Stock Identifier Part Codes
| CBH MODULE ONLY |
| CBHMODULEONLY |
Components
For LitePlan Central Battery Driver with Hold Off
Downloads
| CBH MODULE Datasheet |
