Liteplan HRN/3-K Module, Battery and Charge LED Indicator for 4-36W Lamps (3.6V 4.5Ah NiCd Battery)
Quick Find: 55680
Product Discontinued
This item was discontinued on 14th June, 2019
Height
45 mm
Input Voltage
220-240 V
Length
165 mm
Manufacturer
Liteplan
Technology
LED
Wattage
4.7 W
Width
29 mm
Liteplan HRN/3-K Module, Battery and Charge LED Indicator for 4-36W Lamps (3.6V 4.5Ah NiCd Battery) from Lite-Plan
Model: HRN/3/KIT

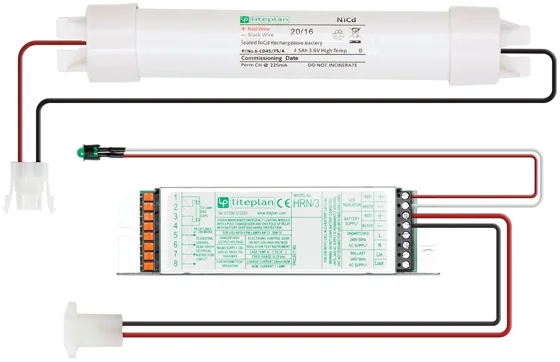

This Liteplan 3 hour emergency lighting HRN conversion kit is supplied as a module, battery and charge indicating LED and has been designed for integral mounting with 4-pin fluorescent lamps. This range is supplied in conversion kit form, with a 500mm green charge healthy LED indicator and mounting collar, irreversible battery connector and NiCd battery in stick formation.
Technical Specifications
| Technology | LED |
|---|---|
| Wattage | 4.7 W |
| Manufacturer | Liteplan |
| Height | 45 mm |
| Input Voltage | 220-240 V |
| Length | 165 mm |
| Batteries | NiCd |
| Batteries | 3.6V |
| Batteries | 4.5Ah |
| Charging Time | 24 Hours |
| IP Rating | IP20 |
| Width | 29 mm |
| Charge Current | 200mA Nominal |
| Emergency Duration | 3 Hours |
| Cut-Off Voltage | 3.0V |
| Discharge Current | 1.1 Amps |
