Red Arrow 18W IP44 Round Mini LED Panel Daylight
Quick Find: 65993
Part No: ORB18-CCT
In Stock 18
Available for delivery
Additional Stock Available
Usually delivers in 1-6 days
Available for delivery
Additional Stock Available
Usually delivers in 1-6 days
Price
£15.30
Inc. VAT £18.36
RRP £31.40
51% Off
Save a total of £16.10
Save a total of £16.10
£15.30
Inc. VAT £18.36
Inc. VAT £18.36
Saving 51% (£16.10) on RRP: £31.40
Quick Find: 65993
Part No: ORB18-CCT
Beam Angle
120 Degrees
Colour Temp
6000 K
Depth
34 mm
Diameter
225 mm
Dimming?
Non-Dimmable
Downlight Cut Out
210 mm
Equivalent Wattage
60 W
Finish
White
Light Colour
Daylight (860/865)
Light Fitting Type
LED Panel
Lumens
1400 lm
Manufacturer
Red Arrow
Material
Aluminium
Technology
LED
Type
Light Fitting
Voltage
220-240 Volt
Wattage
18 W
Red Arrow 18W IP44 Round Mini LED Panel Daylight from Red Arrow
Model: ORB18-CCT

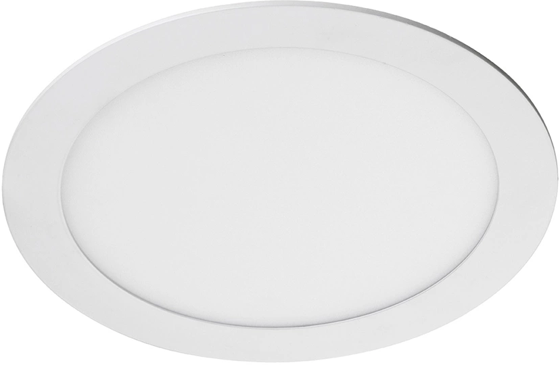

A 18W IP44 round mini LED panel light that will produce 1440 lumens of 6000K (Daylight) coloured light. The panel is manufactured from aluminium and polycarbonate to ensure longevity and an impressive lifespan of 30,000 hours. The panels are supplied with fixed output as standard, however additional items can be purchased seperately to convert into either a dimmable or emergency luminaire. Panel Dimensions: Diameter: 225mm x Depth: 35mm. Cut Out Size: 210mm. Can be dimmer compatible with addition of an ORB18D-DVR dimmable driver.
Potential Energy Savings
Your saving would be approximately £352.80
Technical Specifications
| Light Fitting Type | LED Panel |
|---|---|
| Technology | LED |
| Wattage | 18 W |
| Manufacturer | Red Arrow |
| Light Colour | Daylight (860/865) |
| Dimming? | Non-Dimmable |
| Equivalent Wattage | 60 W |
| Beam Angle | 120 Degrees |
| Lumens | 1400 lm |
| Colour Temp | 6000 K |
| Depth | 34 mm |
| Diameter | 225 mm |
| Type | Light Fitting |
| Finish | White |
| Manufacturers Average Lamp Life | 30000 hrs |
| Voltage | 220-240 Volt |
| Material | Aluminium |
| IP Rating | IP44 |
| Operating Temperature | -10°C to +50°C |
| Warranty | 3 Years |
| Downlight Cut Out | 210 mm |
| Energy Efficiency Rating | A+ |
Associated Product Barcodes
| 5055807622400 |
Alternative Stock Identifier Part Codes
| ORB18-60 |
Components
For Red Arrow 18W IP44 Round Mini LED Panel Daylight
Downloads
 | Datasheet |
| | Instruction Manual |
