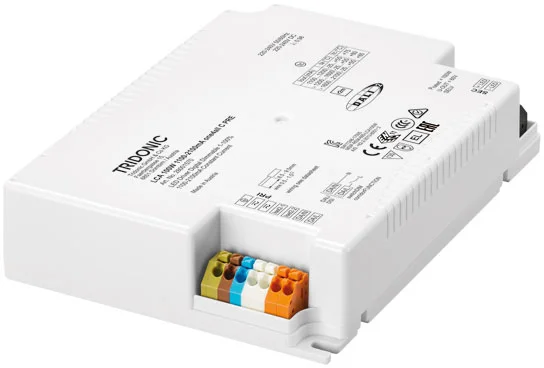

Tridonic Compact LED Driver LCA 100W 1100-2100mA one4all C PRE
Quick Find: 54377
Part No: 28001570
In Stock
Available for delivery
Available for delivery
Price
£59.10
Inc. VAT
£70.92
RRP
£94.55
37% Off
Save a total of £35.45
Save a total of £35.45
£59.10
Inc. VAT £70.92
Inc. VAT £70.92
Saving 37% (£35.45) on RRP: £94.55
Quick Find: 54377
Part No: 28001570
Accessory Type
LED Driver
Control Gear Technology
LED
Current Output
1100-2100mA
Dimming?
Dimmable
Height
30 mm
Input Voltage
198-264
Length
140 mm
Manufacturer
Tridonic
Material
Polycarbonate
Output Voltage (LED Driver)
60 V
Type
Control Gear
Voltage
60 Volt
Wattage
100 W
Width
100 mm
Tridonic Compact LED Driver LCA 100W 1100-2100mA one4all C PRE from Tridonic
Model: 28001570
The Tridonic Compact LED Driver LCA 100W 1100-2100mA one4all C PRE Tridonic 28001570 is a high-quality and reliable LED driver. With a power output of 100W and a current range of 1100-2100mA, it provides versatile and efficient lighting solutions. The one4all technology allows for easy adaptation to various LED modules, making it a flexible choice for different lighting applications. With its compact design and superior performance, this LED driver is a reliable and energy-efficient solution for your lighting needs.
Technical Specifications
| Accessory Type | LED Driver |
|---|---|
| Wattage | 100 W |
| Manufacturer | Tridonic |
| Dimming? | Dimmable |
| Height | 30 mm |
| Input Voltage | 198-264 |
| Length | 140 mm |
| Type | Control Gear |
| Manufacturers Average Lamp Life | 100000 hrs |
| Voltage | 60 Volt |
| Material | Polycarbonate |
| IP Rating | IP20 |
| Current Output | 1100-2100mA |
| Warranty | 5 Years |
| Width | 100 mm |
| Rated Supply Voltage | 220-240 |
| Mains Frequency | 0 / 50 / 60 Hz |
| Efficiency at Full Load | 93.00% |
| Housing Style | Compact |
| Operating Mode (Constant Current / Constant Voltage) | Constant Current |
| Over Voltage Protection | 320 V AC 48h |
| Max Input Power | 110W |
| Inrush Current | 50 A / 209 µs |
| Output Voltage (LED Driver) | 60 V |
| Control Gear Technology | LED |
Alternative Stock Identifier Part Codes
Components
For Tridonic Compact LED Driver LCA 100W 1100-2100mA one4all C PRE
Downloads
 | Datasheet |
| | Product Manual |
