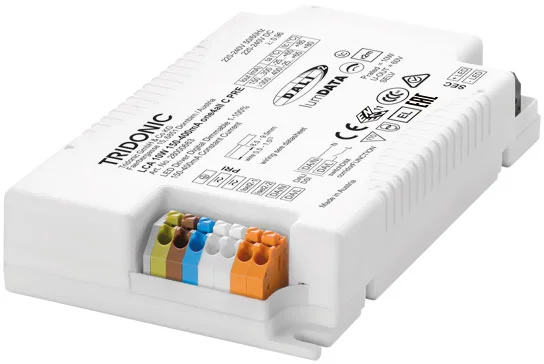

Tridonic Compact LED Driver LCA 10W 150-400mA one4all C PRE
Quick Find: 54363
Part No: 28000663
In Stock
Available for delivery
Available for delivery
Price
£34.71
Inc. VAT
£41.65
RRP
£55.54
38% Off
Save a total of £20.83
Save a total of £20.83
£34.71
Inc. VAT £41.65
Inc. VAT £41.65
Saving 38% (£20.83) on RRP: £55.54
Quick Find: 54363
Part No: 28000663
Accessory Type
LED Driver
Control Gear Technology
LED
Current Output
150-400mA
Depth
22 mm
Dimming?
Dimmable
Height
31 mm
Input Voltage
198-264
Length
105 mm
Manufacturer
Tridonic
Material
Polycarbonate
Output Voltage (LED Driver)
60 V
Type
Control Gear
Voltage
60 Volt
Wattage
10 W
Width
70 mm
Tridonic Compact LED Driver LCA 10W 150-400mA one4all C PRE from Tridonic
Model: 28000663
The Tridonic Compact LED Driver LCA 10W 150-400mA one4all C PRE Tridonic 28000663 is a high-quality LED driver designed for efficient and reliable operation. With a wide output current range of 150-400mA and a power rating of 10W, this driver is suitable for a variety of LED lighting applications. Its compact size and robust construction make it easy to integrate into lighting systems, while the one4all interface ensures compatibility with a range of LED modules. Trust Tridonic for dependable performance and superior quality in LED driver technology.
Technical Specifications
| Accessory Type | LED Driver |
|---|---|
| Wattage | 10 W |
| Manufacturer | Tridonic |
| Dimming? | Dimmable |
| Depth | 22 mm |
| Height | 31 mm |
| Input Voltage | 198-264 |
| Length | 105 mm |
| Type | Control Gear |
| Manufacturers Average Lamp Life | 100000 hrs |
| Voltage | 60 Volt |
| Material | Polycarbonate |
| IP Rating | IP20 |
| Current Output | 150-400mA |
| Warranty | 5 Years |
| Width | 70 mm |
| Rated Supply Voltage | 220-240 |
| Mains Frequency | 0 / 50 / 60 Hz |
| Efficiency at Full Load | 82.00% |
| Housing Style | Compact |
| Operating Mode (Constant Current / Constant Voltage) | Constant Current |
| Over Voltage Protection | 320 V AC 48h |
| Max Input Power | 13W |
| Inrush Current | 15 A / 243 µs |
| Output Voltage (LED Driver) | 60 V |
| Control Gear Technology | LED |
