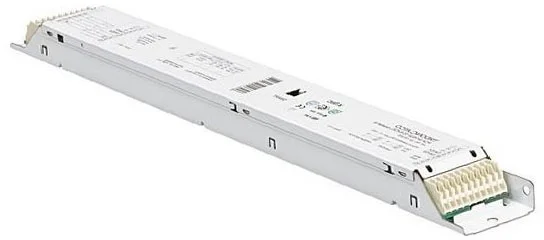

Tridonic T5 Dimmable High Frequency Ballast 1 x 28/54w T5 ECO
Quick Find: 6309
Product Discontinued
This item was discontinued on 1st February, 2023
Recommended alternative:
Tridonic T5 Dimmable High Frequency Ballast 1 x 28w ECO
Check out our full range:
Tridonic T5 Dimmable High Frequency Ballasts
Accessory Type
Ballast
Compatible Lamp Type
T5
Control Gear Technology
Fluorescent
Control Gear Type
High Frequency
Depth
29 mm
Dimming?
Dimmable
Length
360 mm
Manufacturer
Tridonic
No. Of Lamps
Single (1x)
Type
Control Gear
Wattage
54 W
Width
30 mm
Tridonic T5 Dimmable High Frequency Ballast 1 x 28/54w T5 ECO from Tridonic
Model: PCA 1/54 T5 ECO
From Tridonic Lighting a 54W ECO Dimmable High Frequency Ballast that runs T5 Fluorescent Lamps. This compact gear offers noise free operation, automatic restart and compatibility with emergency lighting systems. In addition lamp start at 10% and a 100,000 hour life make this a high performance gear.
Technical Specifications
| Control Gear Type | High Frequency |
|---|---|
| Accessory Type | Ballast |
| Wattage | 54 W |
| Manufacturer | Tridonic |
| Dimming? | Dimmable |
| No. Of Lamps | Single (1x) |
| Depth | 29 mm |
| Fixing Centers | 350mm |
| Lamp | 1 x 54w |
| Length | 360 mm |
| Type | Control Gear |
| Terminals | 4 |
| Width | 30 mm |
| Compatible Lamp Type | T5 |
| Control Gear Technology | Fluorescent |
| Manufacturers Part Number | 22089461 |
Associated Product Barcodes
| 9006210355283 |
Alternative Stock Identifier Part Codes
| 22089461 |
| PCA 1x28/54 T5 ECO |
| PCA1X25T5ECO |
