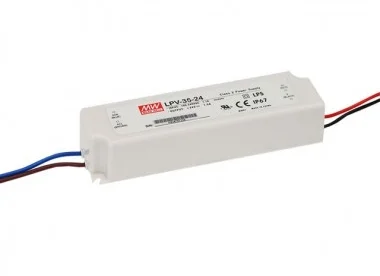

Mean Well Non-Dimmable Constant Voltage IP67 LPV-35 35W 24V LED Driver
Quick Find: 51253
Product Discontinued
This item was discontinued on 22nd April, 2025
Check out our full range:
LED Drivers
Accessory Type
LED Driver
Control Gear Technology
LED
Dimming?
Non-Dimmable
Height
30 mm
Input Voltage
90-264 V
Length
148 mm
Manufacturer
Mean Well
Material
Plastic
Type
Control Gear
Voltage
24 Volt
Wattage
35 W
Width
40 mm
Mean Well Non-Dimmable Constant Voltage IP67 LPV-35 35W 24V LED Driver from Mean Well
Model: LPV-35-24
Technical Specifications
| Accessory Type | LED Driver |
|---|---|
| Wattage | 35 W |
| Manufacturer | Mean Well |
| Dimming? | Non-Dimmable |
| Height | 30 mm |
| Input Voltage | 90-264 V |
| Length | 148 mm |
| Type | Control Gear |
| Voltage | 24 Volt |
| Material | Plastic |
| IP Rating | IP67 |
| Current Output | 0~1.5A |
| Current Output | 1.5A |
| Warranty | 5 Years |
| Frequency Range | 47~63Hz |
| AC Inrush Current (max.) | Cold start, 55A at 230VAC |
| Width | 40 mm |
| Safety Standards | UL1310, IEC60950-1 approved |
| AC Current | 1.1A/115VAC 0.7A/230VAC |
| Efficiency | 85% |
| Control Gear Technology | LED |
Alternative Stock Identifier Part Codes
| LPV-35-24 |
Components
For Mean Well Non-Dimmable Constant Voltage IP67 LPV-35 35W 24V LED Driver
Downloads
 | Datasheet Mean Well Non-Dimmable Constant Voltage IP67 LPV-35 35W 24V LED Driver |
