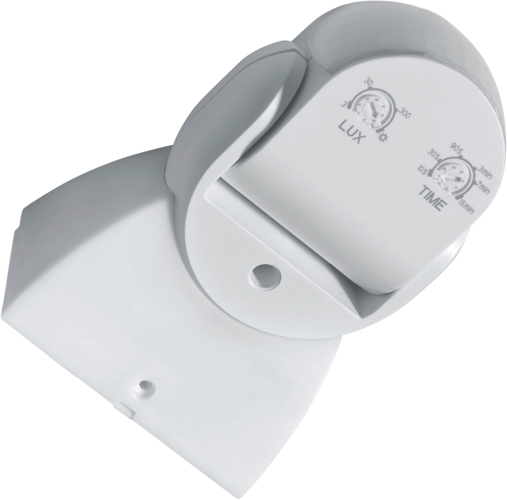

Robus PROTON White Multi-Directional 180 Degree PIR IP54

Passive infra red ensures light is switched on when this Robus sensor detects movement of heat and is switched off when area is vacated, which minimises false/unwanted triggering. Suitable for outdoor applications, it has a manual over ride with automatic reset after 8 hours with large terminals that accept 2 x 1.5mm2 conductors in each terminal and the facility for loop in loop out. Earth terminal included and 3 wire capacity means multiple sensors can be wired in parallel. High load contact rating, allows numerous fittings to be switched with no minimum load requirements. Maximum loading: - 1200W Incandescent - 300W Fluorescent - 300W LED. Adjustable time delay of 10sec to 15min. Adjustable lux settings 3lx to 2000lx. Max detection area of 12m diameter at 2.5m. Complete with accessory shield to reduce detection angle. Corner mounting bracket available as accessory - code: RPRBRK-01. Not for sale in Germany, France, Belgium, Netherlands, Switzerland, Luxembourg and Italy.
