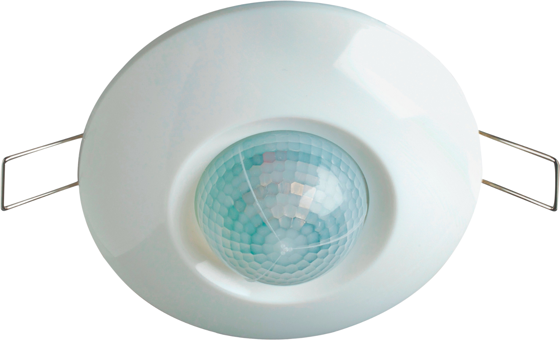

Robus PROTON UNIVERSAL 360 Degree Surface White PIR IP20

Suitable for both surface and recessed indoor applications with an injection moulded ABS body making it impact resistant with plug in terminal block and sensor module. Large terminals accept 2 x 1.5mmý conductors in each terminal with the facility to loop in/loop out to parallel sensors or multiple fittings and adjustable time delay of 10sec to 40min ensures that lighting is switched off with required delay. Adjustable lux setting of 10 to 2000lx. Detection range 360 degree detection distance 10m at 2.8m mounting height. Passive infra-red; ensures light is switched on when sensor detects movement of heat, therefore lighting is switched off when the area is vacated and minimizes false/unwanted triggering. Adjustable passive photocell; inhibits switching where natural light is sufficient. High load contact rating; allows numerous fittings to be switched. Maximum LED load of 300W. Maximum Fluorescent load of 600W. Maximum Resistive load of 2000W. IP rating: surface mounted IP44, recessed IP20
